A loader electronic scale is a specialized weighing system integrated into wheel loaders, designed to measure material weight in real time during loading, lifting, and transporting processes. It eliminates the need for separate weighing stations, significantly boosting operational efficiency in construction, mining, agriculture, and logistics sectors.
Whatsapp:
+8618616761223E-mail:
admin@pushton.comPUSHTON is a comprehensive production enterprise integrating research and development, production, sales, and after-sales service of weighing equipment. The company's main products include weighing sensors, weighing controllers,electronic scales, truck scales, wheel loader scale, forklift weighing systems, and other weighing equipment. PUSHTON always adheres to the values of "integrity and efficiency, pragmatic innovation, customer-oriented, and quality focus" and the development strategy of "quality first, continuous improvement," with optimized industrial structure as the basis, technological innovation as the driving force, and talent operation as the lever to achieve sustainable and rapid development.
Wide Compatibility & Easy Integration

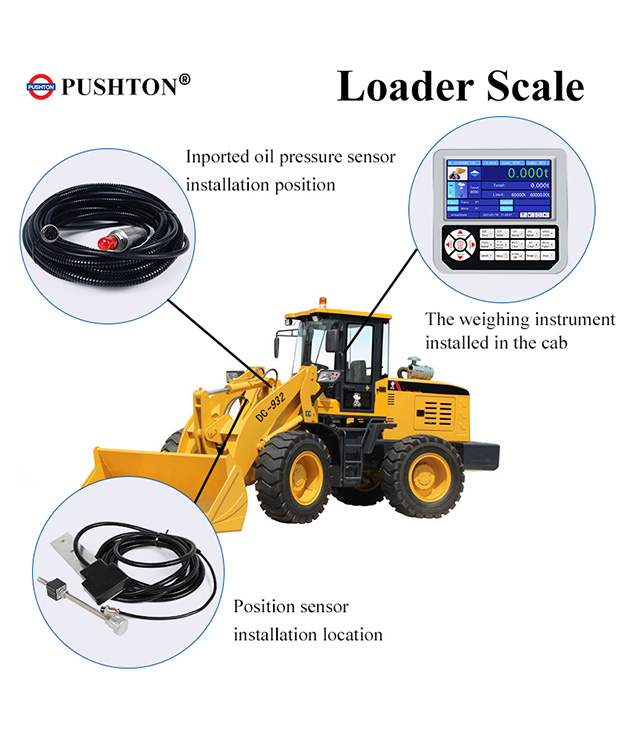

Designed to (adapt to) most mainstream loader models (e.g. Caterpillar, Komatsu, Volvo) with minimal modifications to the original hydraulic or electrical systems. lt supports quick installation (typically 2-3 hours) and can connect to existing on-board control units, avoiding complex retrofitting costs.
User-Friendly Operation & Low Learning Curve

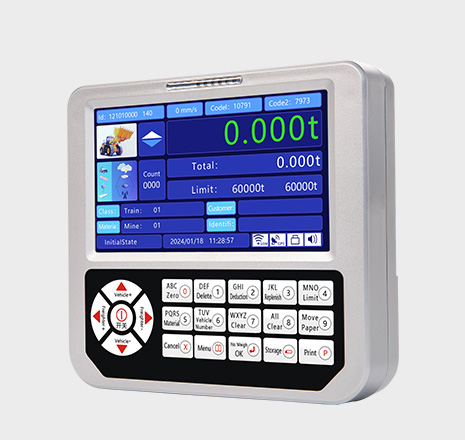

The intuitive color LCD display supports switching between five languages: Chinese, English, Russian, Turkish, and Spanish. The system also provides real-time visual and audio prompts (such as "approaching target load") to guide operators, reducing training time for new employees to just one to two working days.
Remote Data Synchronization & Security
Optional wireless conectivity (4G) enables real-time synchronization of weighing data to a cloud platform or back-endmanagement system. lt supports role-based access control (RBAC) to prevent unauthorized data modification, and automaticallybacks up records to prevent data loss due to local device failure-critical for meeting audit and traceability requirements.
Eco-Friendly & Energy-Saving Design
Adopts low-power consumption components (standby power <5W) that draw minimal energy from the loader’s battery, avoiding excessive power drain during long working hours. Additionally, by optimizing load accuracy, it reduces unnecessary trips (e.g. reloading due to underloading), cutting fuel consumption by 8%-12% and lowering carbon emissions per project.
Adaotability to Special Working Conditions (Optional for Extended Need)
For extreme environments (e.g., high-altitude mining, humid agricultural fields), optional upgrades include waterproof sensors(1P67/lP68 rating) and anti-corrosion casings. it can also be configured with cold-resistant batteries for low-temperature regions(-40°C to 0°C), ensuring stable performance in diverse operational scenarios.
Products
Products
| Working features ofPSD9000 |
| ☆Microcomputer control,high degree of intelligence,a small and concise design. English key board and voice version announcer with a auto-flash reminder.easyand handy. |
| ☆Adoption of electronic data acquisition system helps load presetting and weighing in movements. |
| ☆Preventing over or shortage loading. |
| ☆Double oil sealing paths plus other equipment producing high accurateloadweight mneasuremnent. |
| ☆Thanks to the dynamic weighing procedure, the weight of the load isassessedduring the loading process -no stops needed. |

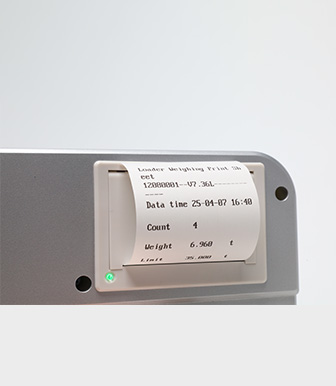

| ☆All information be printed: the loading time, company name, vehiclenumber andidentity, material names , and weight. |

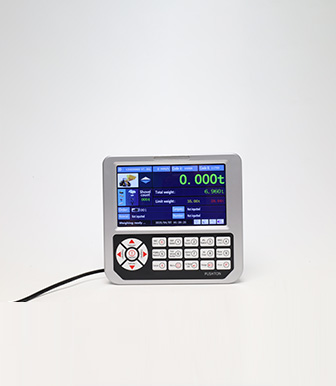

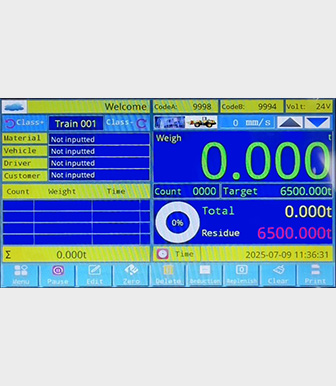

| ☆800*480 large-screen display, presenting result of weight, accumulatedwelghtand systemn instructions. |
| ☆English voice speaker reminds driver of the weight ,overloadingbucketremains, last load and turning on /off , minimizing drivers mistakesespecially atnight. |
Founded in 2014, we independently produce and develop loader scales, forklift scales, portable mobile scales, portable vehicle axle load meters, belt scales and weighing control systems. We support OEM & ODM.
